Railway Equipment Ⅲ

other railway maintenance equipment

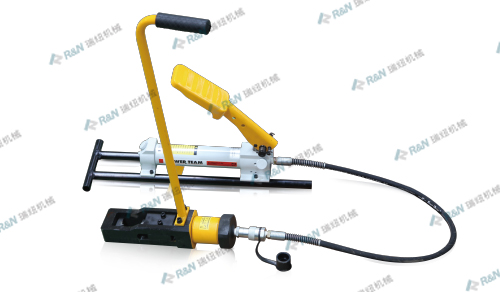

YLP-24 Nut Splitters

Product Description:

For breaking corroded nuts in the railway.

The main technical                        parameters:

Model                                                   YLP-24

Rated working pressure（MPa）       63

Stroke（mm）                                     40

Splitting force（kN）                          147

Weight(kg)                                           15（with hand pump）

Railway Equipment Ⅲ

other railway maintenance equipment

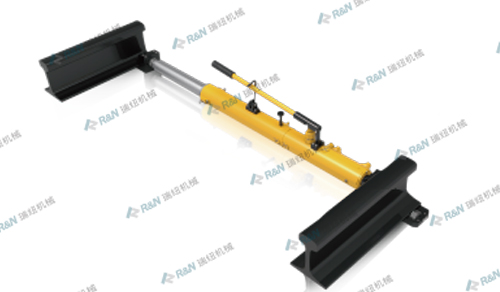

YTJ-20A Hydraulic Gauge Regulator

Product Description:

It is suitable for diversion work, repairing lines and adjusting the rail gauge of all kinds of high-speed rail, the common rail.

The main technical parameters:

Model                                         YTJ-20A

Rated adjusting force（kN）     36

Adjusting Quantity(mm)            ±10

Weight(kg)                                  42

Railway Equipment Ⅲ

other railway maintenance equipment

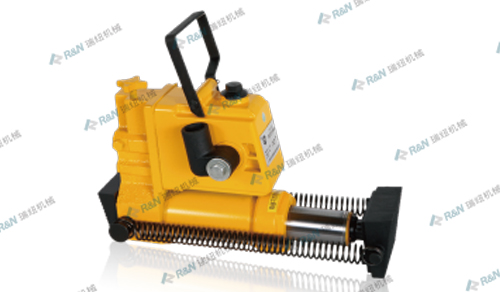

YTJ-18 Hydraulic Gauge Regulator

Product Description:

It is kind of small equipment which is used to adjust the gauge. It adjusts gauge from the bottom of the rail, so can be accommodate in small AGL (Above Ground Level) operational.

The main technical parameters:

Model                                                      YTJ-18

Rated adjusting force（kN）                  50

Adjusting Quantity(mm)                         ±18

The minimum height of AGL（mm）     23

Weight(kg)                                               22.5

Railway Equipment Ⅲ

other railway maintenance equipment

JT-15 Mechanics Gauge Regulator

Product Description:

It is suitable for high-speed rail, ordinary ballasted track gauge adjustment operations. It can be applied in three kinds of gauge that is 1435, 1440, 1450. The Angled block rail hooks is completely independent intellectual property rights, it is operated quickly and conveniently.

The main technical parameters:

Model                                               JT-15

Rated adjusting force（kN)             15

Adjusting Quantity(mm)                  ±25

Weight(kg)                                        10

Railway Equipment Ⅲ

other railway maintenance equipment

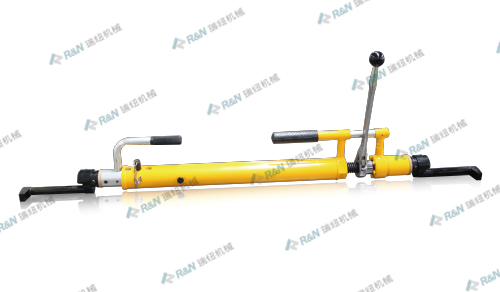

YFZ-147 Hydraulic Side Pillow Tool

Product Description:

The tool is used to adjust the spacing of railway sleepers, prompt the sleeper’s space are equalizer,  distribute stress on the track to prevent deformation and damage to the rail.

The main technical parameters:

Model                                                YFZ-147

Maximum adjusting force  (kN)        147

Maximum adjusting Quantity (mm) 120

Weight(kg)                                          15

Railway Equipment Ⅲ

other railway maintenance equipment

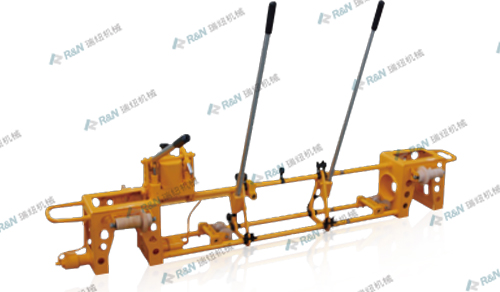

GFT-40 Hydraulic Rail Gap Adjuster

Product Description:

It is suitable for various types of rail joints. It has compact structure, can be turn to pull machine through by parts of our made easily.

The main technical parameters:

Model                                          GFT-40

Maximum tension(kN)                400

Maximum working stroke(mm)  130

Weight(kg)                                   73

Railway Equipment Ⅲ

other railway maintenance equipment

YDG Hydraulic Top Track Tool

Product Description:

It is use to position the new track panel during the operation what is changing old panels.

The main technical parameters:

Model                                 YDG-294

Rated force（kN）              294

Maximum stoke（mm）     70

Railway Equipment Ⅲ

other railway maintenance equipment

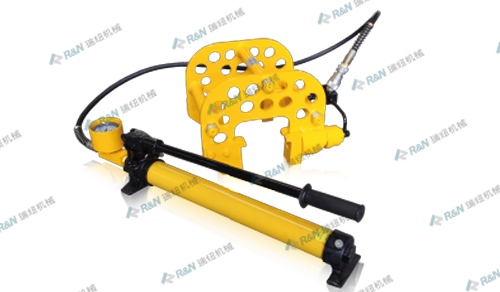

YKJ Hydraulic Clamp Fastener

Product Description:

YKJ series products are mainly used in the vanguard of the fastener installation and removal. They have compact, easy to apply features.

The main technical parameters:

Model                                                                   YKJ-98

Rated clamping force                                           98

Applicable rail type（kg/m）                               60

Rated stroke（mm）                                             38

Center distance of clamping cylinders（mm）   270

Weight（kg）                                                        25

Railway Equipment Ⅲ

other railway maintenance equipment

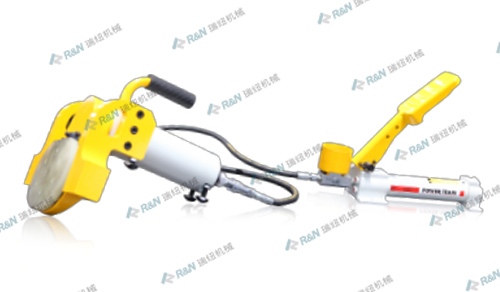

YT-10 Rescue Device

Product Description:

It is designed to widen the gap of the station (subway, high-speed rail) and the train, rescue passengers who were fall into in the gap. We have complete independent intellectual property rights. It rescue fast, easy to operate, no damage to the facilities of the train or the station .It provides double protection to the people who are in damaged.

The main technical parameters:

Model                                       YT-10

Rated pushing force（kN）     10

Maximum stoke（mm）          50

Weight（kg）                           30

Railway Equipment Ⅲ

other railway maintenance equipment

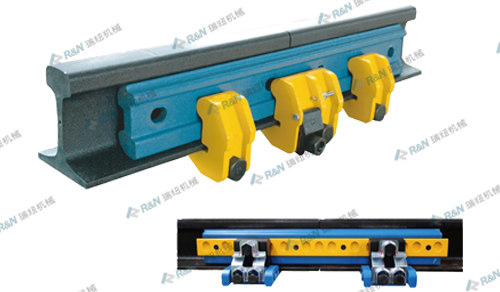

GWJ Non-hole Rail Joint Clamper

Product Description:

It is mainly used for rail connection when rail or rail welding joint in juried in emergency or laying seamless route. The clamping force of the bolt can keep the same by anti-loose nut. 60S is especially suitable for rail bottom whose surface distance is greater than or equal to 25mm. 60SD is suitable for surface distance which is (34-45) mm.

Railway Equipment Ⅲ

other railway maintenance equipment

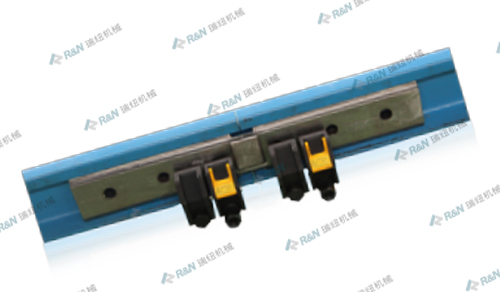

GWJ-60G Non-hole Rail Joint Clamper

Product Description:

It is mainly used for rail connection when rail or rail welding joint in juried in emergency or laying seamless route. Reasonable structure, large rail joints resistance. It is convenient operation, safe and reliable.

Railway Equipment Ⅲ

other railway maintenance equipment

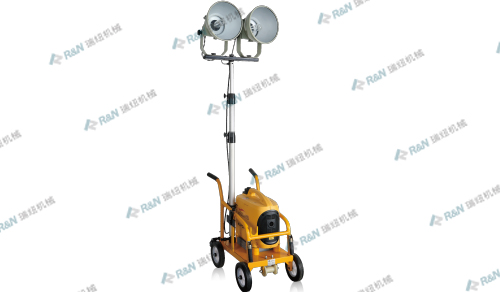

QYZ2800 Portable Lighting Device

Product Description:

Providing illumination for night time track maintenance or emergency repair.

The main technical parameters:

Model                                                                   QYZ2800

Rated output voltage of the AC generator         220

Maximum output power of the generator          1050

Light source power                                               150×2

Continuous working time                                     6

Adjustable height range of the light                   1450～2800

Lighting distance                                                   150

Weight                                                                    42

Railway Equipment Ⅲ

other railway maintenance equipment

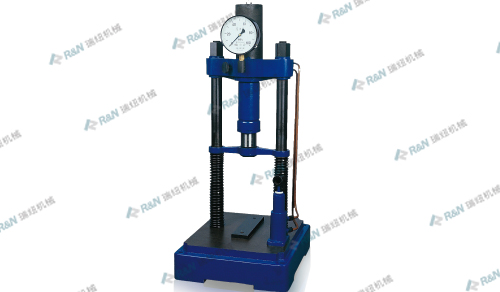

SYS-32 Test Table

Product Description:

It is suitable for checking, adjustment and repairing of railway maintenance equipment.

The main technical parameters:

Model                                             SYS-32

Maximum load(kN)                        314

Maximum stroke(mm)                    180

Effective working space(mm)    210×460×350

Weight(kg)                                       20

Railway Equipment Ⅲ

other railway maintenance equipment

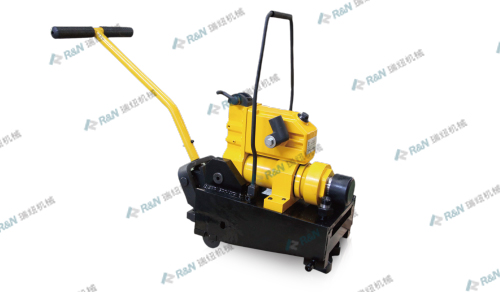

YJB-160 Hydraulic Motorized Wrench

Product Description:

The machine is used to twisting the bolts and nuts of ties.

The main technical parameters:

Model                                                 YJB-160

Engine power（KW)                           4.5

Sleeve speed(r/min)                           115

Rated output torque(Nm)                  160

Tightening torque range(Nm)           80~220

Maximum output torque(Nm)           300

Output torque accuracy(%)                ±5

Timing(s)                                             5

Weight(kg)                                          83

Railway Equipment Ⅲ

other railway maintenance equipment

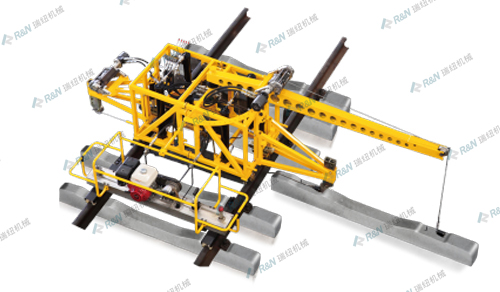

YHZ-6.5 Hydraulic Sleeper Replacing Machine

Product Description:

It is used to change sleeper. It can lift rail, replace the new sleeper in one process. Can greatly reduce the labor intensity, improve operational efficiency. Easy to operate.

The main technical parameters:

Model                                                          YHZ-6.5

Rated lifting power（kN）                         220

Maximum lifting rangem（mm）              650

Maximum removing force(KN)                   7.8

Maximum hanging sleeper force（kN）   3.9

Whole weight（kg）                                   550

Part weight（kg）                                       260
